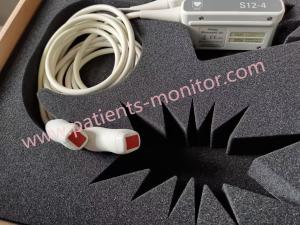

PHiliphh S12-4 sector array transducer 12 - 4 MHz Used good condition FOR IE33, IU22, HD 11XE, HD 15, HD 9 ultrasound Machine
► Specification of PHiliphh S12-4 sector array transducer 12 - 4 MHz
| Product Name | PHiliphh S12-4 sector array transducer 12 - 4 MHz |
| Brand | PHiliphh |
| Part No | S12-4 |
| Frequency range | 12 - 4 MHz |
| Aperture | 9.78 mm |
| Number of elements | 96 |
| Array Type | Sector |
| Field of view | 90° |
| Modes | 2D, steerable PW Doppler, CW Doppler, High-PRF Doppler, color Doppler, tissue Doppler, advanced XRES, and harmonic imaging |
| Applications | Pediatric cardiac and neonatal head applications |
| Biopsy capable | No |
► Probe Common Problems
1. Probe wear
After a certain period of use, the surface of the ultrasound probe will gradually wear out, causing poor reflection of the ultrasonic signal and affecting the detection accuracy. If the probe is worn out, it should be replaced or repaired in a timely manner.
Repair method: Remove the probe, clean the residue, wipe the surface with a cloth, and then replace the new probe.
2. Poor contact of the probe line
While an ultrasound probe is in use, its transmission line may disconnect or have poor contact, causing the signal to be lost or the data to not be fully displayed.
Repair method: Check the probe line. If disconnected, the probe line should be soldered or replaced with a new probe line. If poor contact is found, the probe line can be cleaned with alcohol or the line connector replaced.
3. Probe waterproof seal failure
When using an ultrasonic probe, water is needed to transmit ultrasound, which plays the role of transmitting sound waves and sound images. Therefore, the effectiveness of the probe's water seal is crucial to its operational effectiveness. A bad water seal on the probe will affect the transmission of sound waves and the effectiveness of the image, and may even damage the probe.
Maintenance method: First check whether the probe's water seal is good. If not, replace the new water seal or fill it with a sponge. At the same time, it is also necessary to check whether the probe's water tank, water supply pipe and drain pipe are normal to ensure smooth water circulation.
4. Aging of probe parts.
When an ultrasonic probe is used for a long time, the probe parts will age, such as the fatigue of the probe's piezoelectric sheet and the aging of the coil. These problems will affect the transmission of ultrasonic signals and images.
Maintenance method: If the probe parts are aging, it is recommended to replace a new ultrasound probe for maintenance.
Summary: The above is an introduction to the common faults of ultrasound probes and maintenance methods. In the process of using ultrasound probes, faults should be resolved in a timely manner to ensure the normal operation of the probe and the accuracy and effectiveness of detection.
Thank you so much for your attention .If you have any interested in PHiliphh S12-4 Sector Array Transducer 12 - 4 MHz For IE33, IU22, HD 11XE, HD15, HD9 Ultrasound ,feel free to contact us .Thank you .
