PHiliphh FM20 FM30 FM40 FM50 Fetal Monitor M2735A TOCO+ Probe Bottom Cover DLP-002-08
Brief Introduction of PHiliphh FM20 FM30 FM40 FM50 Fetal Monitor M2735A TOCO+ Probe Bottom Cover DLP-002-08
PHiliphh M2735A TOCO+ Probe Bottom Cover is used for PHiliphh M2735A TOCO+ Probe .The cover is protected the probe from damage ,dusty .It’s made of durable plastic .The color is yellow .On the top of the cover ,there is a red connector ,which is connected ECG/IUP adapter cables.The The function of M2735A is equaled to PHiliphh M2734B TOCO probe and PHiliphh M2738A ECG module
Specification of PHiliphh FM20 FM30 FM40 FM50 Fetal Monitor M2735A TOCO+ Probe Bottom Cover DLP-002-08
| Temperature Range | Operating | 0°C to 40°C (32°F to 104°F) |
| Storage | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | Operating | <95% relative humidity @ 40°C/104°F |
| Storage | <90% relative humidity @ 60°C/140°F |
| Altitude Range | Operating | -500 to 3000 m/-1640 to 9840 ft. |
| Storage | -500 to 13100 m/-1640 to 43000 ft |
| Shock Resistance | Withstands a 1 m drop to concrete surface with possible cosmetic damage only |
| Water Ingress Protection Code | IP 68 (immersion up to 1 m water depth for 5 hours) |
| Dimensions and Weight | Size (diameter) | 83 mm/3.27 in |
| Weight (without cable) | < 220 g/7.8 oz |
| Degree of Protection Against Electrical Shock | Type CF |
| Transducer Identification | Optical Signal Element (Finder LED). Not M2738A |
About PHiliphh TOCO+ M2735A probe
4 Cable - connects to any of the four Fetal Sensor Sockets on the monitor
5 Connector - for connecting ECG/IUP adapter cables (M2735A Toco+ transducer only)

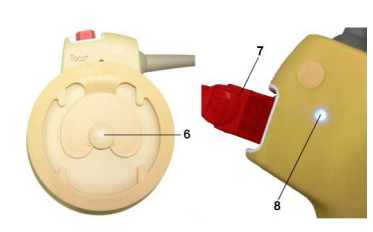

6 Butterfly Belt Clip (shown fitted; for use with belts without button holes)
7 Close-up of MECG adapter cable connected to Toco+ transducer
8 Close-up of active Finder LED
PHiliphh TOCO+ M2735A complete connection Chain
The complete connection chain from the fetal scalp electrode to the fetal monitor using the Toco+ transducer.
A Fetal Scalp Electrode, single spiral (9898 031 37631)
B Fetal Scalp Electrode, double spiral, Europe only, not for USA (9898 031 37641)
C DECG Adapter Cable (9898 031 37651)
D Pre-gelled Attachment Electrode (9898 031 39771)
E Toco+ Transducer (M2735A)
Thank you so much for your attention .If you're interested in PHiliphh FM20 FM30 FM40 FM50 Fetal Monitor M2735A TOCO+ Probe Bottom
Cover DLP-002-08 ,feel free to contact us .Thank you so much .
