PHiliph MP5 Patient Monitor Inverter High Pressure Board CXA-0437 0902 R TDK PCU-P248

PHiliphh MP5 Patient Monitor Inverter High Pressure Board CXA-0437 0902 R TDK PCU-P248

PHiliphh MP5 patient monitor inverter board CXA-0437 0902 R TDK PCU-P248

The PHiliphh MP5 patient monitor inverter board is responsible for converting the direct current (DC) from the monitor's power supply into the alternating current (AC) required to operate the display backlight. This ensures the screen is lit and patient information is displayed.

The inverter board consists of various electronic components. Including transformers, capacitors and transistors. Together, these components convert direct current into high-frequency alternating current, which is used to power the monitor's backlight.

If the inverter board fails, it may result in a dark or blurry screen. Makes reading patient information difficult. In this case, the inverter board may need to be replaced or repaired by a qualified technician.

Caution for PHiliphh MP5 patient monitor inverter board caution

The inverter board is a sensitive component of the PHiliphh MP5 patient monitor. It is responsible for converting direct current (DC) to alternating current (AC) to power the display backlight.

Always use caution and follow proper safety precautions when handling the inverter board to avoid damage or injury. Here are some precautions to remember:

1. Turn off the patient monitor before attempting to repair or replace the inverter board. This helps prevent electric shock or short circuits.

2. Wear an antistatic wrist strap or use an antistatic mat to ensure proper grounding. This helps prevent static electricity from damaging the inverter board or other components.

3. Avoid touching exposed metal parts of the inverter board to avoid electric shock. Always hold the board by the edges or use a suitable tool.

4. Do not apply excessive force or pressure when using the inverter board. This can damage delicate electronic components.

5. Use appropriate tools and equipment, such as screwdrivers or pliers, to remove and install the inverter board. Using incorrect tools could damage the electronic board or cause personal injury.

6. When installing the new inverter board, make sure all connections are properly secured. Loose or incorrect connections may cause malfunction or damage to the monitor.

7. If you are unsure of your ability to handle or replace the inverter board, we recommend that you seek help from a qualified technician or contact the manufacturer's customer service department.

Compliance with these precautions will ensure safe handling and replacement of the PHiliphh MP5 patient monitor inverter board.

Thank you so much for your attention.If you're interested in PHiliphh MP5 Patient Monitor Inverter High Pressure Board CXA-0437 0902 R TDK PCU-P248 ,feel free to contact us .

Patient Monitor Inverter High Pressure Board

CXA-0437 High Pressure Board

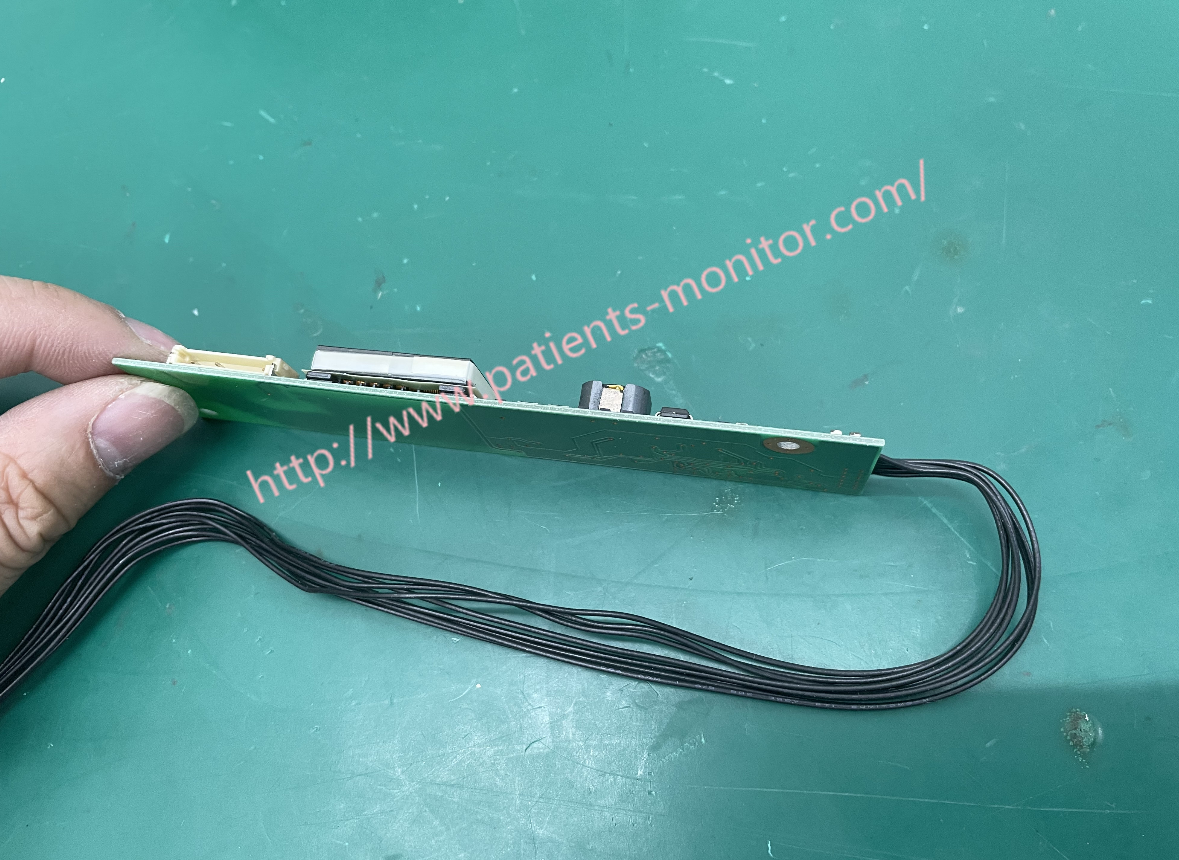

PHiliph MP5 Patient Monitor Inverter High Pressure Board CXA-0437 0902 R TDK PCU-P248 Images
