Primedic M240 DM1 Defi-Monitor Printer Control Board
Printer Control Board 18555 23.07.1997 for Metrax Primedic M240 DM1 Defibrillator/Monitor, Medical Device Spare Parts
► Brief Description
Printer Control Board 18555 23.07.1997 for Metrax Primedic M240 DM1 Defibrillator/Monitor
Primedic M240 DM1 Defi-Monitor Printer Control Board - There is a thermal technology printer on this device, which can print the monitored/stored data onto printing paper through thermal printing technology, allowing users to observe patient data more intuitively , helping users make judgments and decisions more quickly and accurately.
This board is an important component on the printer, and the normal operation of the entire printer is inseparable from the function of this board. It is a used but original professional medical product. It has been professionally tested and has a 90-day warranty. You can contact us at any time during the warranty period for replacement or repair due to quality problems.
► Specification
| Brand: | Primedic |
| Product Category: | Defibrillation |
| Product Type: | Spare Parts |
| Item Type: | Board |
| Item Name: | Printer Control Board |
| Model: | 18555 |
| NO. | 23.07.1997 |
| Machine Application: | M240 DM1 Defi-Monitor |
| Condition: | Used - Working in Good Condition |
| Warranty: | 90 Days |
| Delivery Date: | 3 - 5 Working Days |
| Payment: | Western Union, Bank T/T, Paypal |
| Printer |
| Printer Type: | Thermal Transfer Head, 1-channel |
| Resolution: | 8 bit / 200dp |
| Paper Width: | 58 mm |
| Operating Modes: | - auto print (protocol printing showing the events of the 5 s before and 5 s after defibrillation)
- ECG print (EKG on-line protocol printing)
- MEMO-print (printing of the saved events of the last 10 defibrillations with 5 s before and 5 s after defibrillation)
- 1/3-canal print
*only model DM1 and DM3 |
► More Details
Insert printing paper:
1. First fold the printer cover forward to insert the printing paper (paper roll);
2. Prepare the paper roll provided (tear off the tape and unfold about 10 cm of paper), and insert the paper roll into the printer shaft so that the paper runs according to the opposite drawing (otherwise the paper will be printed on the reverse side);
3. Place the end of the printing paper against the rubber tube, and then press PAPER FEED so that the document is now at the starting position.
4. Close the printer cover, then press in the printing paper again, and the paper will automatically be sent to the cutting edge through the cover shaft.
Note: When opening/closing the printer cover, be sure to operate until you hear a crisp "click" sound from the printer cover, which is when the operation is completed. Because the printer cover is designed so that it pops out of place without damage when stronger external pressure is applied, be sure to replace the printer cover by pushing the spring latch back with a screwdriver until the cover clicks.

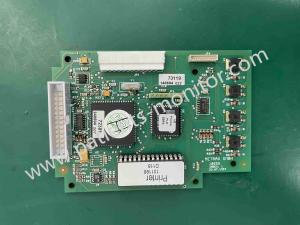

► Detailed Photos
Thanks for your interest in Printer Control Board 18555 23.07.1997 for Metrax Primedic M240 DM1 Defibrillator/Monitor, Medical Device Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
